patio doors
Panoramic lift and slide patio doors
– PRODUCT OVERVIEW –
UNIQUE FEATURES:
Contemporary or stepped sash styles to match the suite
Exceptional thermal performance using Thermlock® technology
The same clip-in bead system as the windows and doors
Part F compliant (ventilation) via separate 25mm head vent which doubles as a frame extension
Three weather-rated thresholds
Frame can be delivered in flat pack for restricted site access
PAS24 accreditation optional
No-nonsense Part L compliance
THERMAL performance:
Double glazed: 1.4 W/m2K
Triple glazed: 1.0 W/m2K
Options:
THRESHOLDS: 3x weather-rated
COLOURS: 7
THERMLOCK: Yes
PRODUCT TYPES: Dual and triple track
• Double and Triple Track options
• Max 6.5 x 2.5m
• Max 400kg Sash
• Slim 106mm Frame to Sash Sightline
• Standard 80mm Interlock Sightline
• Ultra Slim 52mm Interlock Option
• Suitable for most twin track doors
• Up to 44mm Triple Glazing
• 36mm on stepped sashes
THE GLIDE OF YOUR LIFE

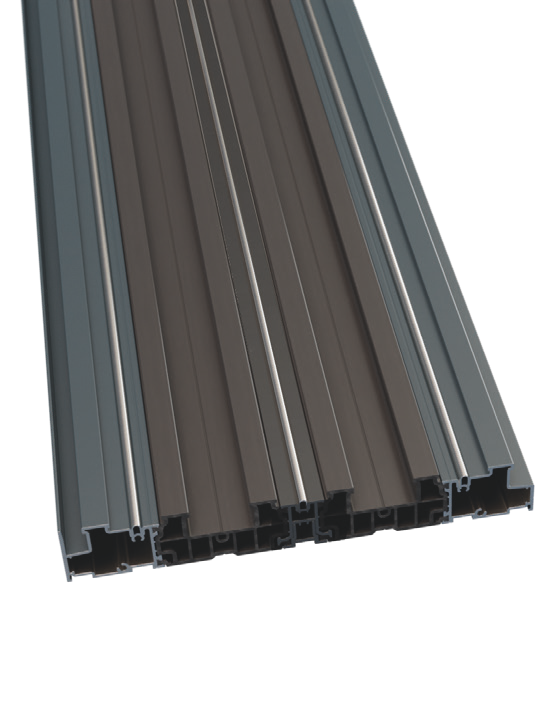

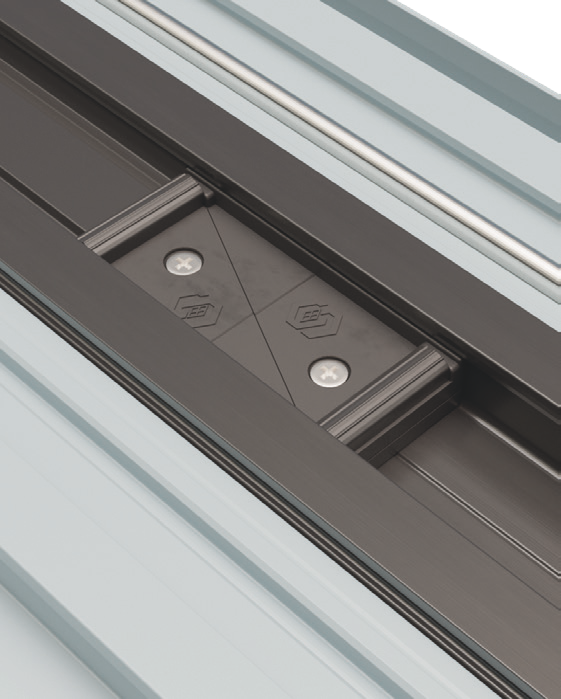

Stainless steel tracks using specially modified high-performance running gear ensures doors glide smoothly

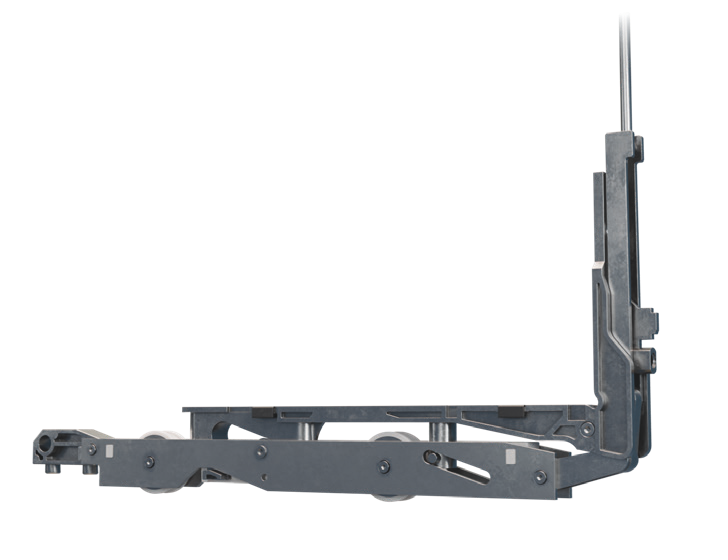

Utilises bespoke Lift & Slide gearing based on a proven platform to ensure super smooth and reliable operation
Patented sealing arrangement keeps doors weathertight
Dual or triple track covers most requirements
Flush jambs prevent snagging and maintains clean visual lines
All gaskets supplied with low friction coating to the contact surfaces for smooth performance and reliable sealing
style
Available in the same style options as the rest of our high-performance aluminium range, integrating to match the whole house.

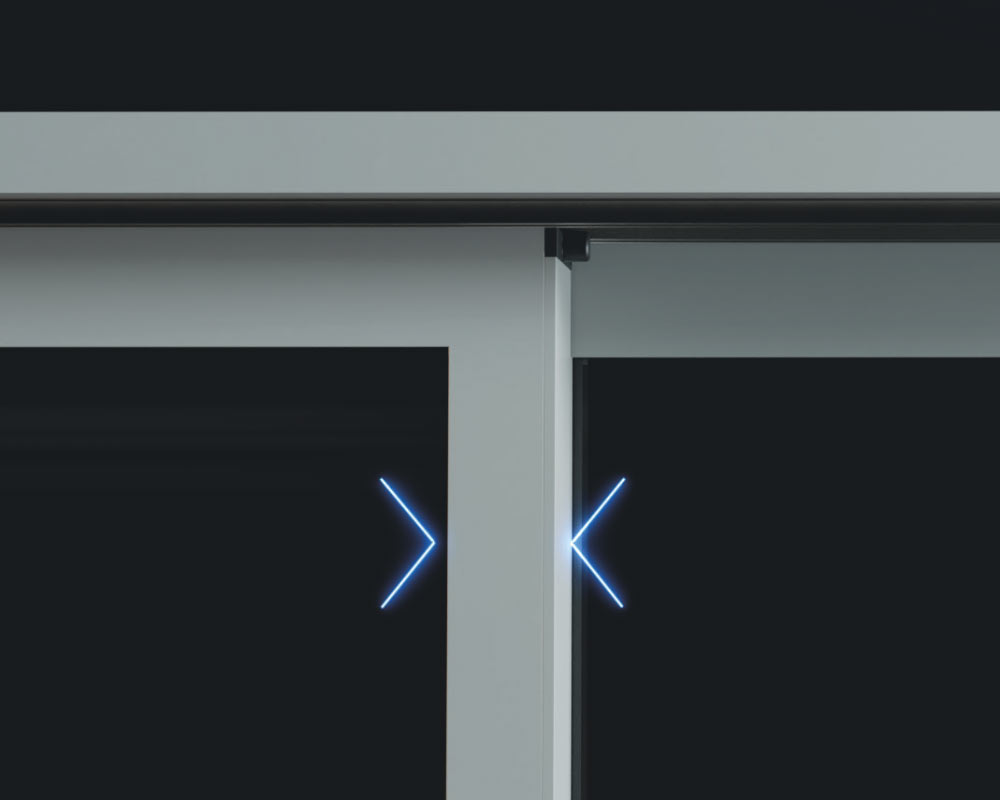

slim
80mm standard

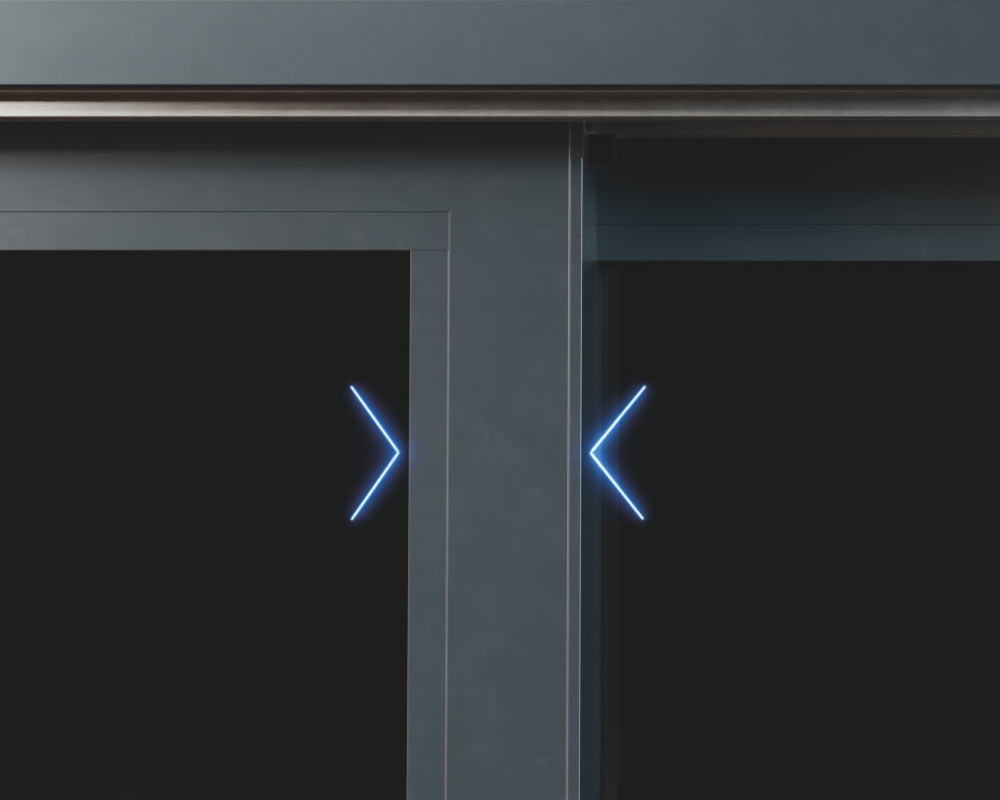

ultra slim
52mm
SLIM, STYLISH
Slim, minimal looks which match the whole range and maximise glass to make the most of the expansive views.
• Available with contemporary and stepped sash to perfectly match the rest of the Sheerline range
• Super slim sightlines of 106mm frame & sash
• 20-31% slimmer than market competitors
• Ultra slim sightlines with interlocks as slim as 52mm
AND SECURE

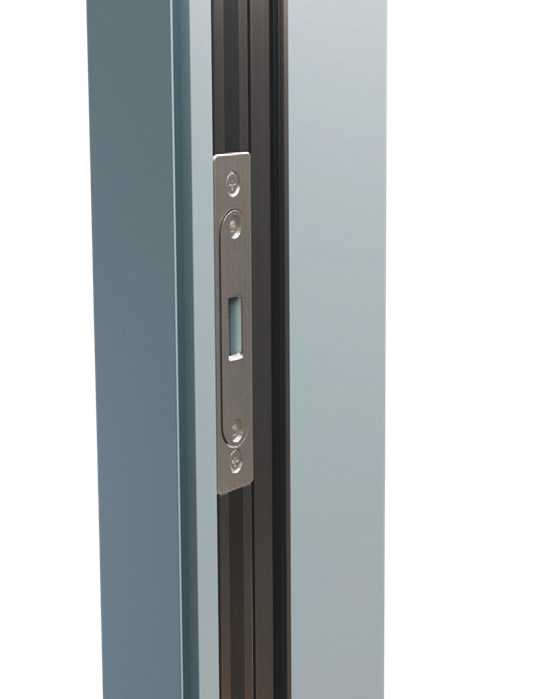

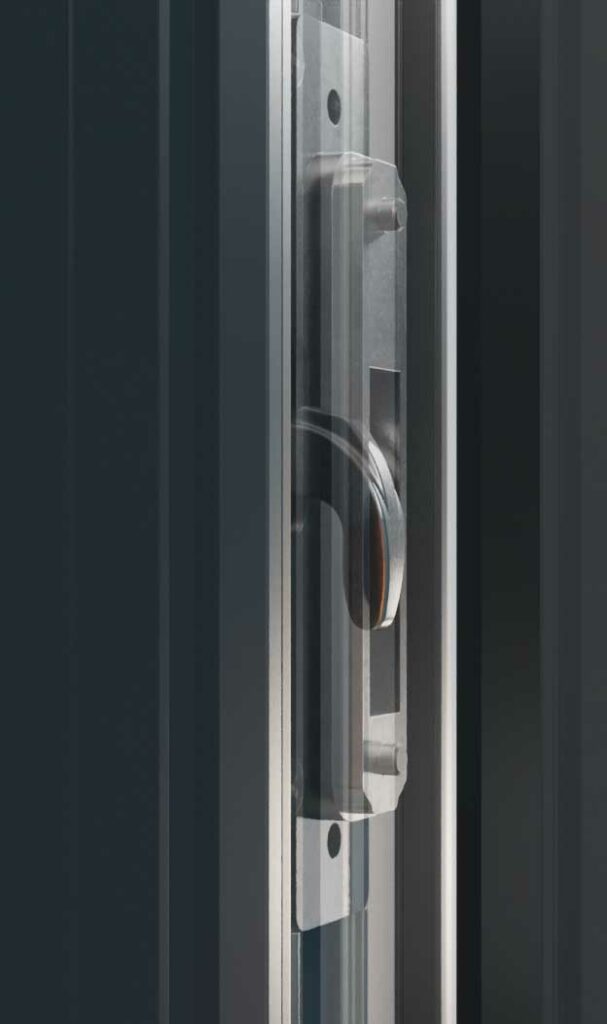

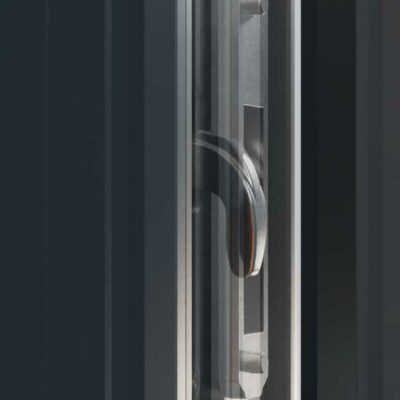

Hooklock: A unique retracting hook-lock with flush-fitting keeps eliminate protruding locking pegs on jambs, for a neater look and less snagging

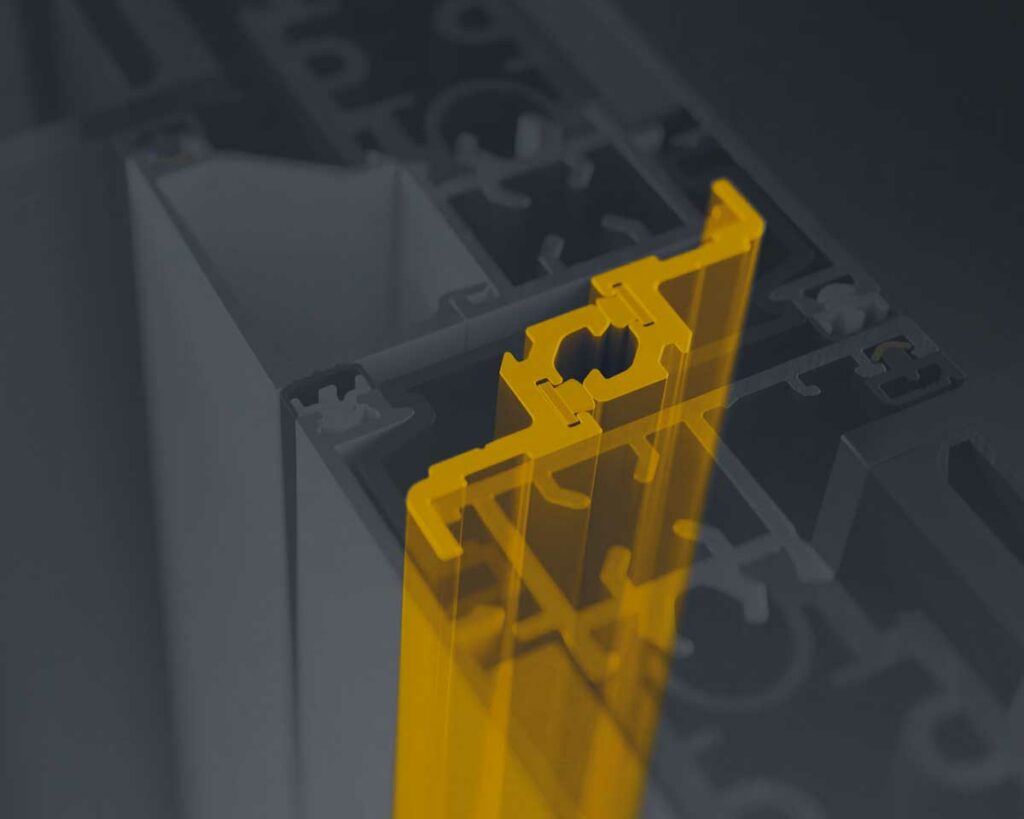

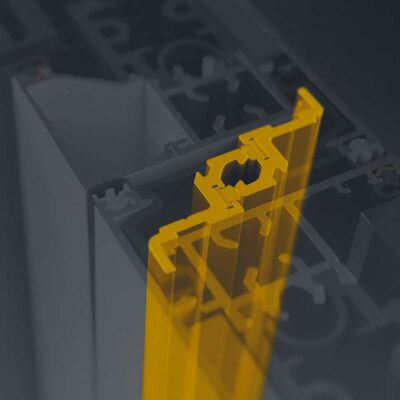

High security interlocks: bind sashes together to stop unwanted intruders. Rated to 4.5kN
Hooklock
High security interlock
Secured By Design (SBD)
Please note: this can be specified when ordering.
Patio specification

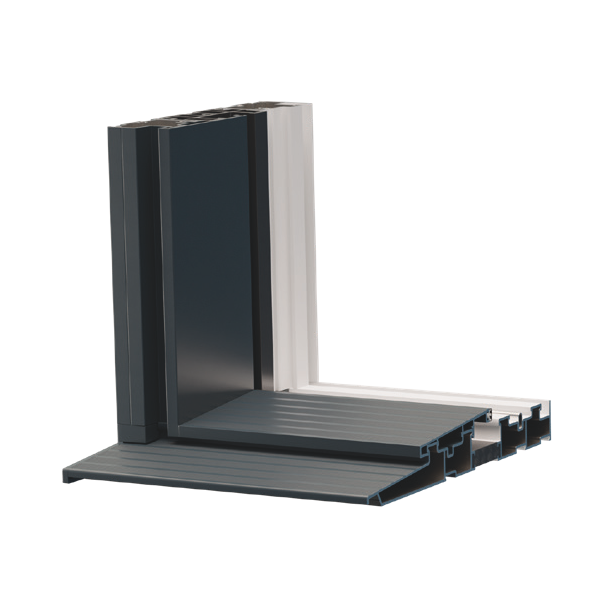

Three weather-rated thresholds. All feature integral drainage built into end caps.
Concealed zero threshold available for seamless transition.
Maximum width: 6.5m unjointed
Maximum height: 2.5m
Maximum sash weight**: 400kg

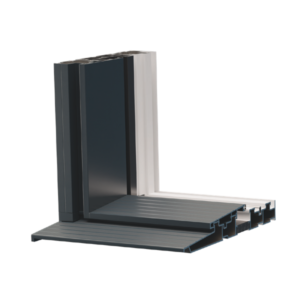

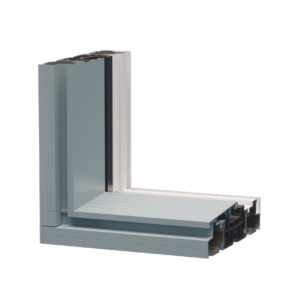

Standard outer frame
with clip-on sill nose

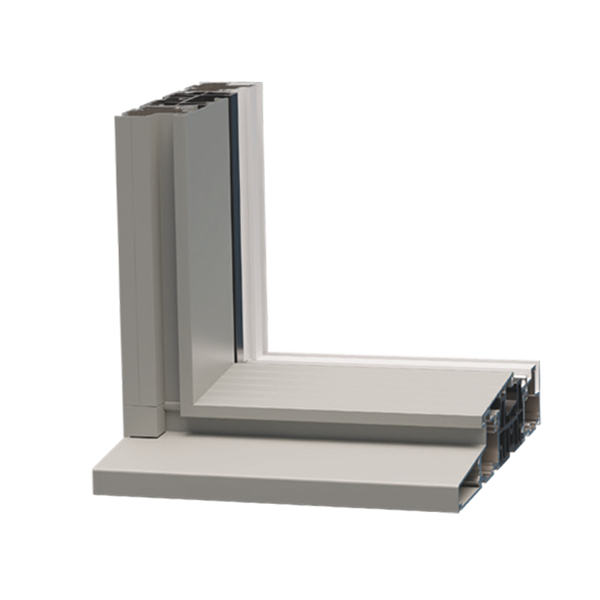

Standard outer frame
(38mm high)

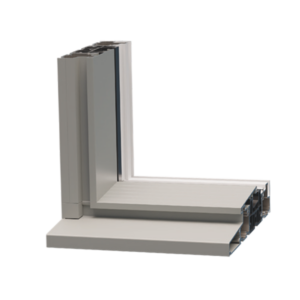

Low threshold*
with ramp (25mm high)
MAX WIDTH
6.5m
unjointed
MAX height
2.5m
MAX sash weight
400kg**

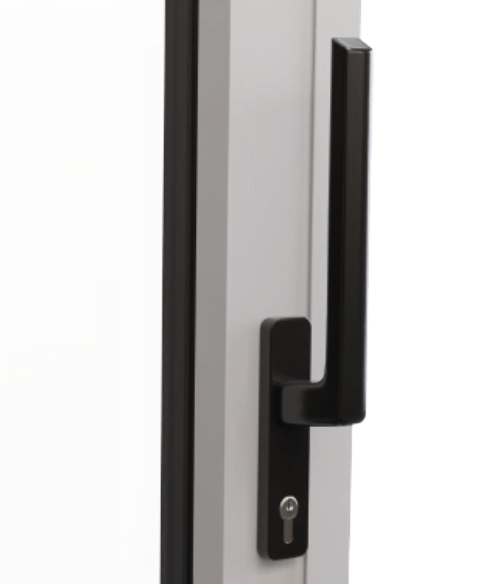

LIFT AND DROP ASSIST
An optional Drop Assist1 dampen the handle’s rotational speed, preventing it arcing too quickly when the sliding door is lowered onto the track.
While the Lift Assist2 helps when raising the sliding door off the track.
Both can be fitted if required and are recommended for extra-large door sashes over
1200KG / 2300KG

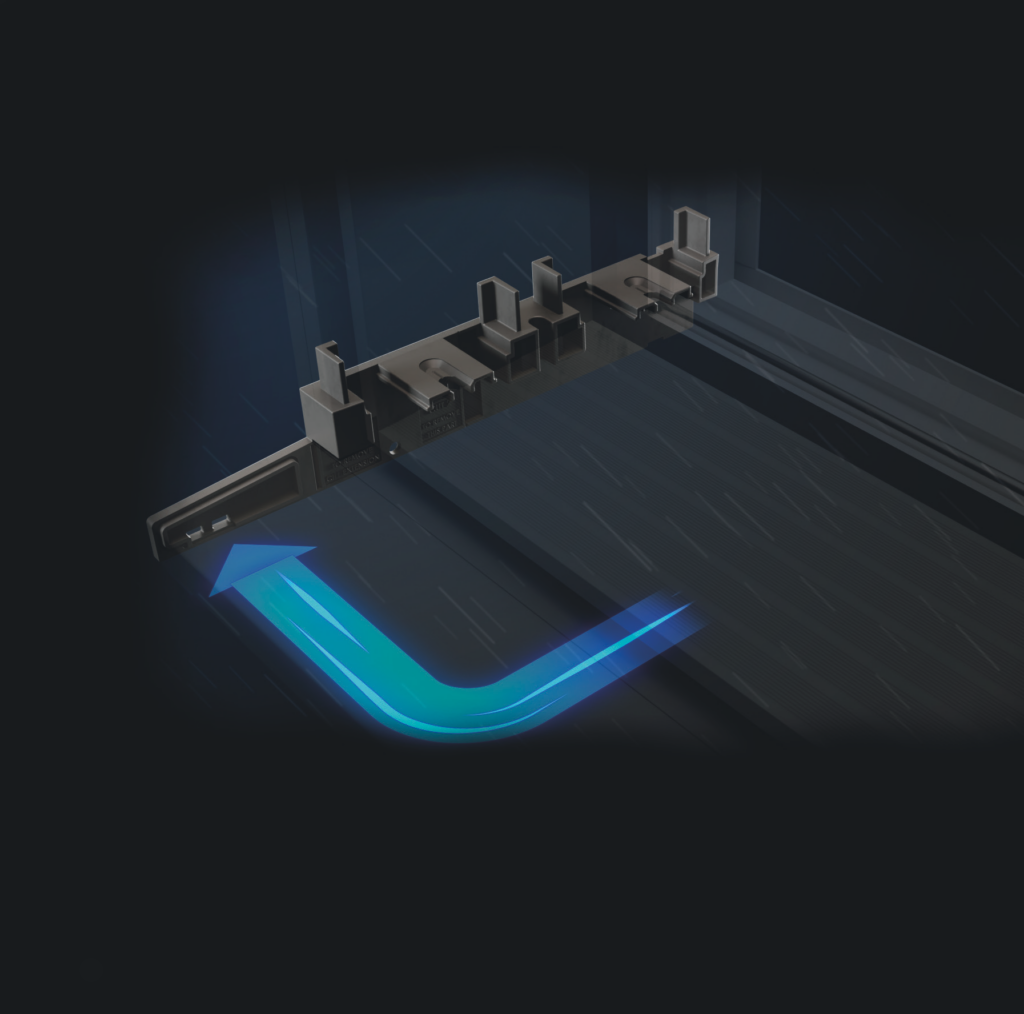

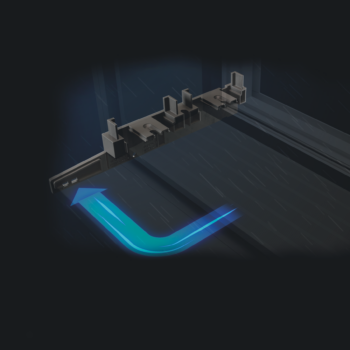

Thresholds feature integral drainage built into threshold end caps
